16-Port Fast Ethernet Industrial DIN-Rail Unmanaged Network Switch, 12-48V DC

LS3216-16T-LV Industrial DIN-Rail Unmanaged Ethernet Switch<br><br>Title:<br>16-Port Industrial Ethernet Switch | DIN-Rail Mount | Wide Voltage Input (12-48V DC) | -40°C to 75°C Operating Temp | 5-Year Warranty<br><br>Key Features at a Glance:<br><br>16-Port Connectivity: 16 x 10/100 Mbps Ethernet ports with auto-negotiation and auto-MDI/MDIX for simplified cabling.<br><br>Industrial Tough: Built to withstand harsh environments with an operating temperature range of -40°C to 75°C (-40°F to 167°F).<br><br>Reliable Power: Features dual redundant 12-48V DC power inputs with overload and reverse polarity protection for continuous, stable operation.<br><br>Plug-and-Play Simplicity: No configuration needed—install and it works immediately.<br><br>Robust Metal Design: Durable metal housing with IP40 protection, fanless cooling, and DIN-rail or optional wall-mount installation.<br><br>Industrial Certifications: Meets key industrial standards for EMI, EMS, shock, vibration, and safety (FCC, CE, EN62368-1).<br><br>Backed by 5-Year Warranty: Guaranteed long-term reliability and peace of mind.<br><br>Product Description:<br><br>The LS3216-16T-LV is a robust, unmanaged industrial Ethernet switch engineered for reliability in demanding applications. It provides 16 Fast Ethernet ports in a compact, metal housing designed for easy DIN-rail installation in control cabinets.<br><br>Built for industrial environments, it operates flawlessly in extreme temperatures from -40°C to 75°C and features a wide-range, redundant DC power supply (12-48V) with protection against power surges and incorrect wiring. Its fanless design ensures silent operation and prevents failure due to dust or fan wear.<br><br>This plug-and-play switch is perfect for creating reliable network connections in industrial automation, factory machine networks, surveillance systems, transportation systems, and outdoor enclosures. It offers a high 8.8Gbps backbone bandwidth and supports jumbo frames for efficient data transmission.<br><br>Technical Specifications:<br><br>Ethernet Ports: 16 x 10/100Base-TX RJ45 ports (Auto MDI/MDIX, Auto-negotiation).<br><br>Standards: IEEE 802.3i, 802.3u.<br><br>Switching Performance:<br><br>MAC Address Table: 8K<br><br>Switching Method: Store-and-Forward<br><br>Backplane Bandwidth: 8.8 Gbps<br><br>Jumbo Frame Support: 2048 Bytes<br><br>Power:<br><br>Input Voltage: 12-48V DC (Dual redundant terminals)<br><br>Consumption: &lt; 8W<br><br>Protections: Overload, Reverse Polarity<br><br>Mechanical &amp; Environmental:<br><br>Housing: Metal<br><br>Cooling: Fanless<br><br>Protection Rating: IP40<br><br>Mounting: Standard DIN-rail (35mm), wall-mount optional<br><br>Dimensions (W x H x D): 42.5 x 161 x 120 mm<br><br>Operating Temperature: -40°C to 75°C<br><br>Operating Humidity: 5% to 95%, non-condensing<br><br>Certifications &amp; Compliance: FCC, CE (EN55022 Class A), EMS (EN61000-4-2/3/4/5/6), Shock &amp; Vibration (IEC60068-2-27/32/6), Safety (EN62368-1).<br><br>Warranty: 5 Years.<br><br>Ideal For:<br>Industrial Automation Networks, Factory Floor Connectivity, Digital Surveillance (CCTV) Systems, Power Utility Systems, Intelligent Transportation, and Outdoor Cabinet Networking.

• • 16 Fast Ethernet Ports: 16 x 10/100 Mbps RJ45 ports with auto-negotiation and auto-MDI/MDIX for hassle-free connections.
• • Industrial-Grade Durability: Operates reliably in extreme temperatures from -40°C to 75°C with a sturdy metal IP40-rated housing.

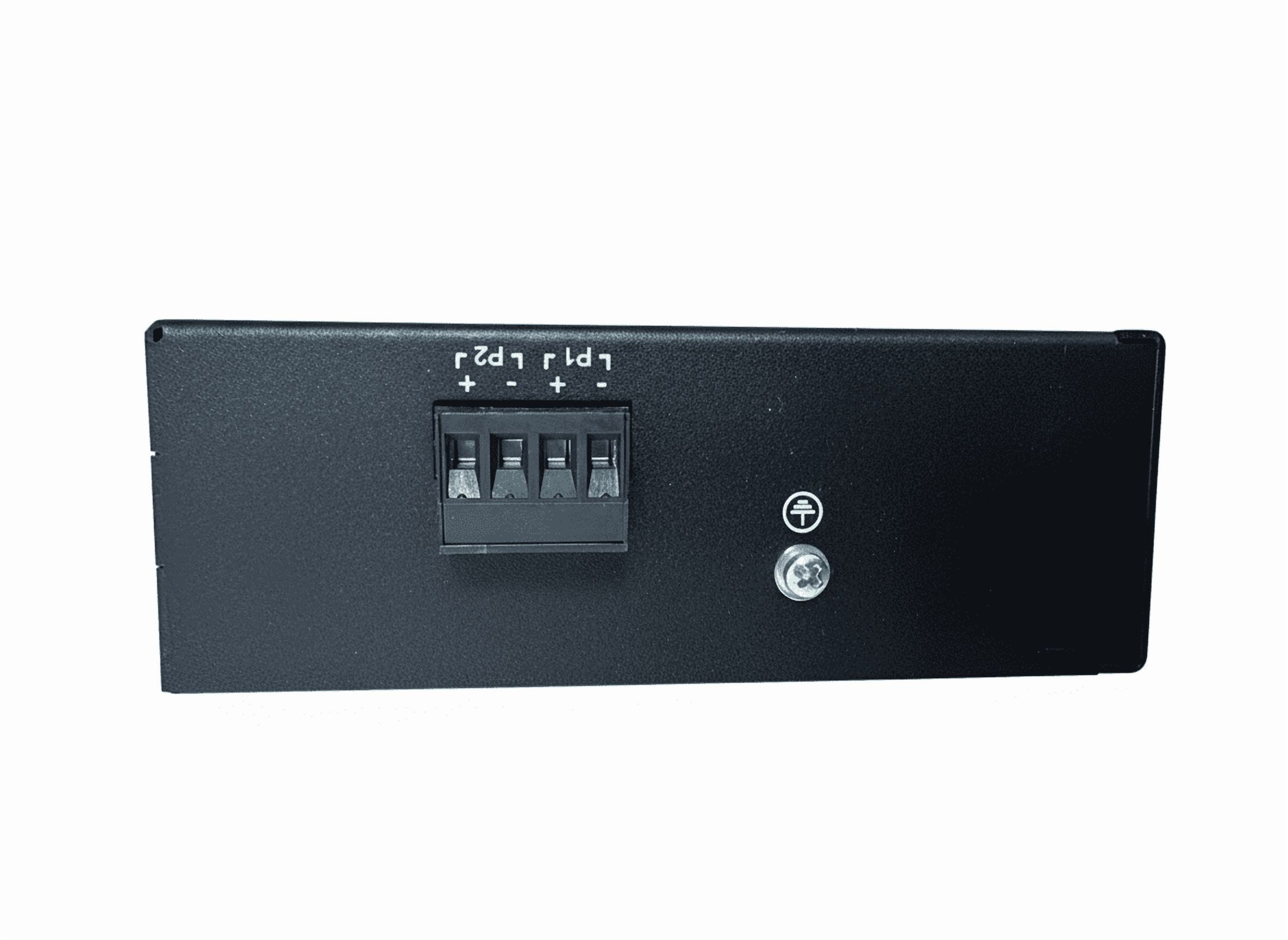

• • Wide & Redundant Power Input: Flexible 12-48V DC dual power inputs with overload and reverse polarity protection for stable operation in volatile environments.
• • True Plug-and-Play: No configuration required for quick and easy deployment.
• • Robust Fanless Design: Silent, reliable operation with natural cooling, ideal for dusty environments.
