JVCC ATG1 ATG Tape Dispenser: For 1/2" and 3/4" ATG tape (Red)

<p><b>JVCC ATG1 ATG Tape Dispenser</b> is a hand-held tape dispenser for ATG tape. The dispenser/applicator will automatically wind up the liner on your ATG tape during use. It will accommodate both 1/2 inch and 3/4 inch rolls of ATG tape (it accepts 1/4 inch ATG tape also although rolls may slide around a bit on the spool since the spool is wider than the tape; however some people find it not to be an issue). All of the ATG tapes we sell will fit in the ATG1 dispenser. The dispenser color will either be blue, red, teal or orange depending on the color of the last lot received.</p> <p>Please see listing below to confirm which ATG refill rolls work in which ATG dispensers (you can also watch a YouTube video demonstrating the compatibility between ATG refill rolls and ATG guns).</p><br> <b>JVCC ATG1 Dispenser -or- Scotch 700 Yellow Dispenser</b><br><ul><li><b>JVCC ATG-7502</b> (acid neutral): 1/4 x 36, 3/8 x 36, 1/2 x 36, 3/4 x 36</li><li><b>JVCC ATG-7502X</b>: 1/4 x 36, 1/2 x 36, 3/4 x 36</li><li><b>JVCC ATG-7505</b>: 1/4 x 18, 1/2 x 18, 3/4 x 18</li><li><b>Scapa T002</b> (acid neutral): 1/2 x 36, 1/2 x 60, 3/4 x 60</li><li><b>Scapa TD-200</b>: 1/2 x 36, 3/4 x 36</li><li><b>Scapa TD-500</b>: 1/2 x 18, 3/4 x 18</li><li><b>Scotch 908</b> (acid neutral): 1/2 x 36, 3/4 x 36</li><li><b>Scotch 924</b>: 1/2 x 36</li><li><b>Scotch 928</b> (repositionable): 1/2 x 36</li><li><b>Scotch 969</b>: 1/2 x 18, 3/4 x 18<br><br></li></ul><b>Scotch 085 Pink Glider -or- Scotch 714 Red Dispenser -or- Scotch 700A Adapter used in Scotch 700 Yellow Dispenser</b><br><ul><li><b>JVCC ATG-7502</b> (acid neutral): 1/4 x 36 *special core</li><li><b>JVCC ATG-7502X</b>: 1/4 x 36 *special core</li><li><b>Scotch 908</b> (acid neutral): 1/4 x 36</li><li><b>Scotch 924</b>: 1/4 x 36</li><li><b>Scotch 969</b>: 1/4 x 18</li></ul><b>Application Instructions</b><br><p></p><p>For a visual guide to loading and using refill rolls in a JVCC ATG1 dispenser please see http://static.findtape.com/inserts/ATG-Loading-Instructions.pdf.</p> <p><b>USAGE NOTES</b>: Start by putting the roll of tape on the spool in the middle of the gun with the tape running down clockwise (make sure the roll snaps down on to the spool so that if you pull on the tape the roll does not spin freely on the spool unless you are also holding the trigger down). It then runs on top of the roller closest to it and then under the roller in the front of the gun. During usage the adhesive gets applied at the point of the front roller so when you are first loading the gun remove any adhesive off the liner by hand at this point so only the liner then comes back over the roll which is on the main spool in the middle of the gun and then runs under the liner take-up spool (secure the liner in one of the slits in that spool). Then hold the trigger down when applying the tape (it allows the spools to turn). To stop applying let go of the trigger and pull the dispenser away.</p><p></p> <br><br><b>Technical Information</b><br>- Construction: plastic <br>

• JVCC ATG1 ATG Tape Dispenser is a hand-held tape dispenser for ATG tape. The dispenser/applicator will automatically wind up the liner on your ATG tape during use. It will accommodate both 1/2 inch and 3/4 inch rolls of ATG tape (it accepts 1/4 inch ATG tape also although rolls may slide around a bit on the spool since the spool is wider than the tape; however some people find it not to be an issue).

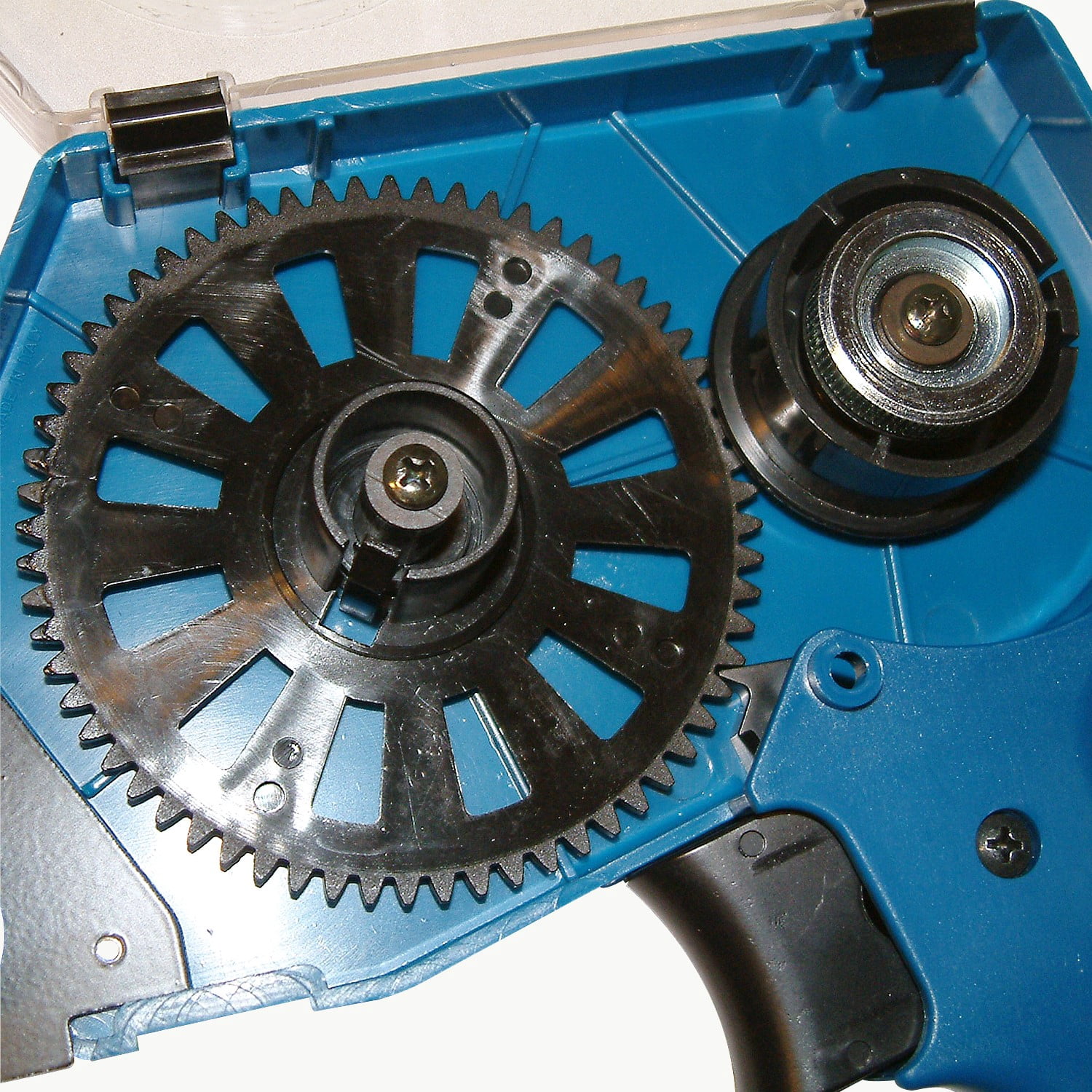

• To use the JVCC ATG1 ATG Tape Dispenser start by putting the roll of tape on the spool in the middle of the gun with the tape running down clockwise (make sure the roll snaps down on to the spool so that if you pull on the tape the roll does not spin freely on the spool unless you are also holding the trigger down). It then runs on top of the roller closest to it and then under the roller in the front of the gun.
• During usage the adhesive gets applied at the point of the front roller so when you are first loading the gun remove any adhesive off the liner by hand at this point so only the liner then comes back over the roll which is on the main spool in the middle of the gun and then runs under the liner take-up spool (secure the liner in one of the slits in that spool).
• Simply hold the ATG1 trigger down when applying the tape (it allows the spools to turn). To stop applying let go of the trigger and pull the dispenser away.
• JVCC ATG1 ATG Tape Dispenser is made of durable plastic and can be used as an alternative to Shurtape SD-950 and ATG-50. The dispenser color will either be blue, red, teal or orange depending on the color of the last lot received.
