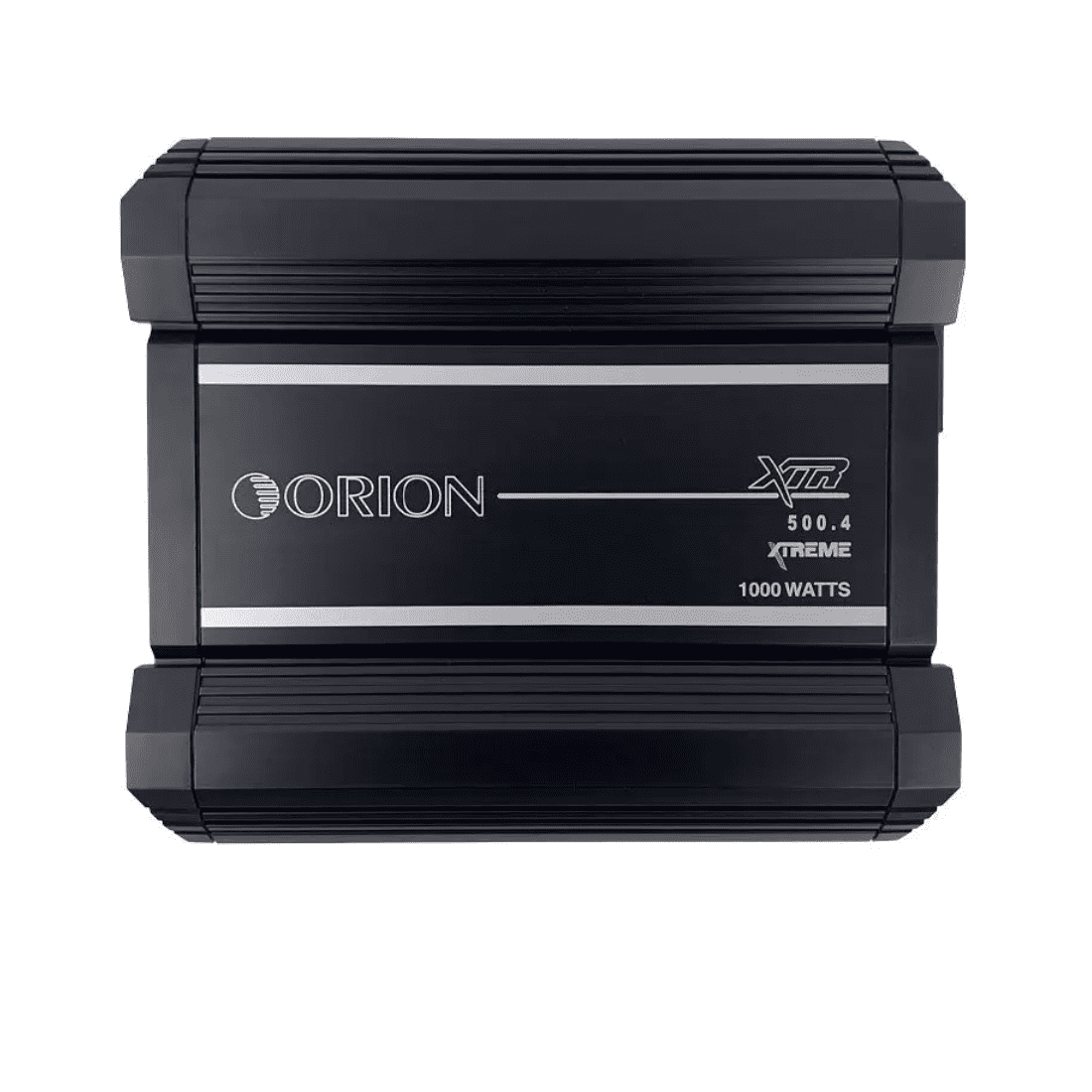

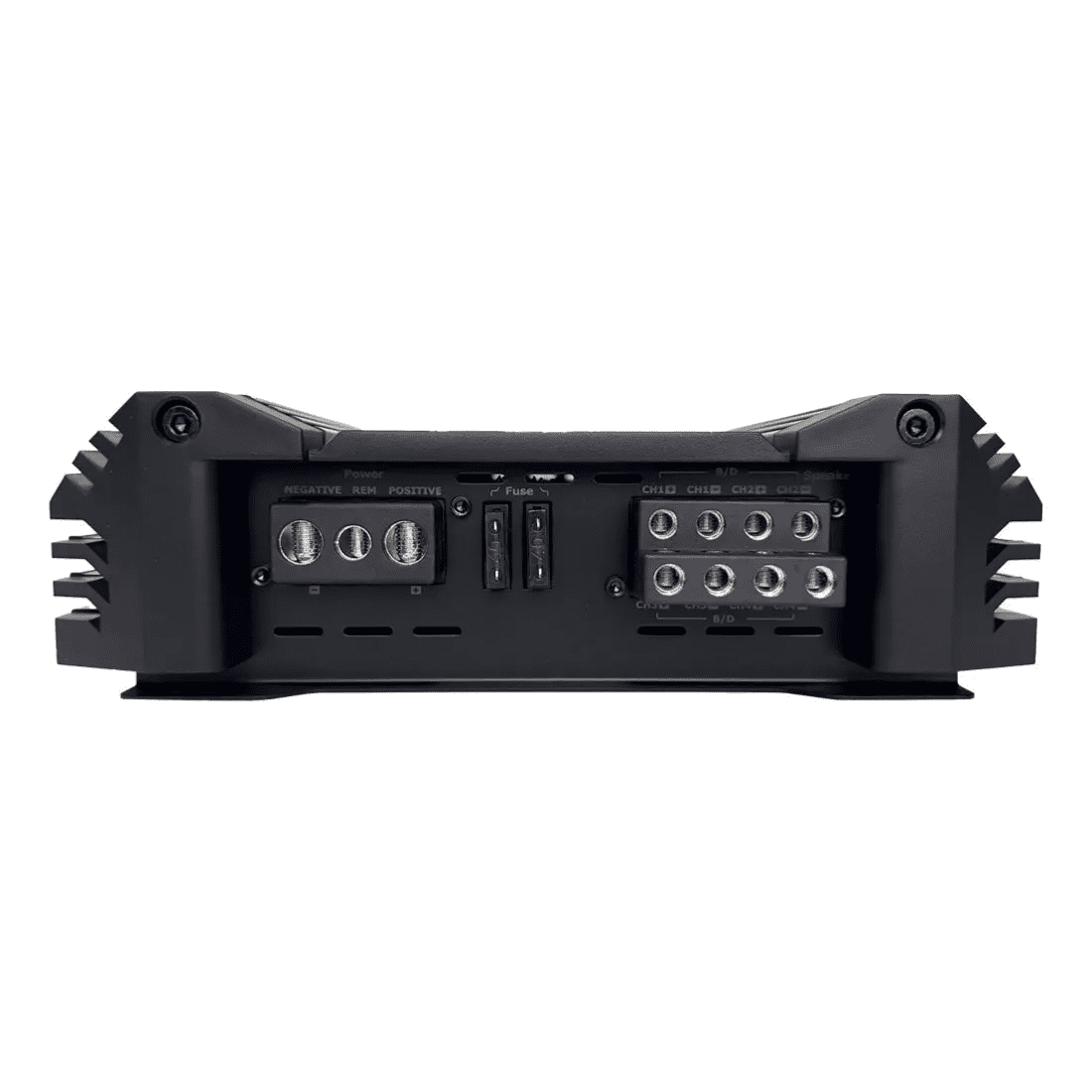

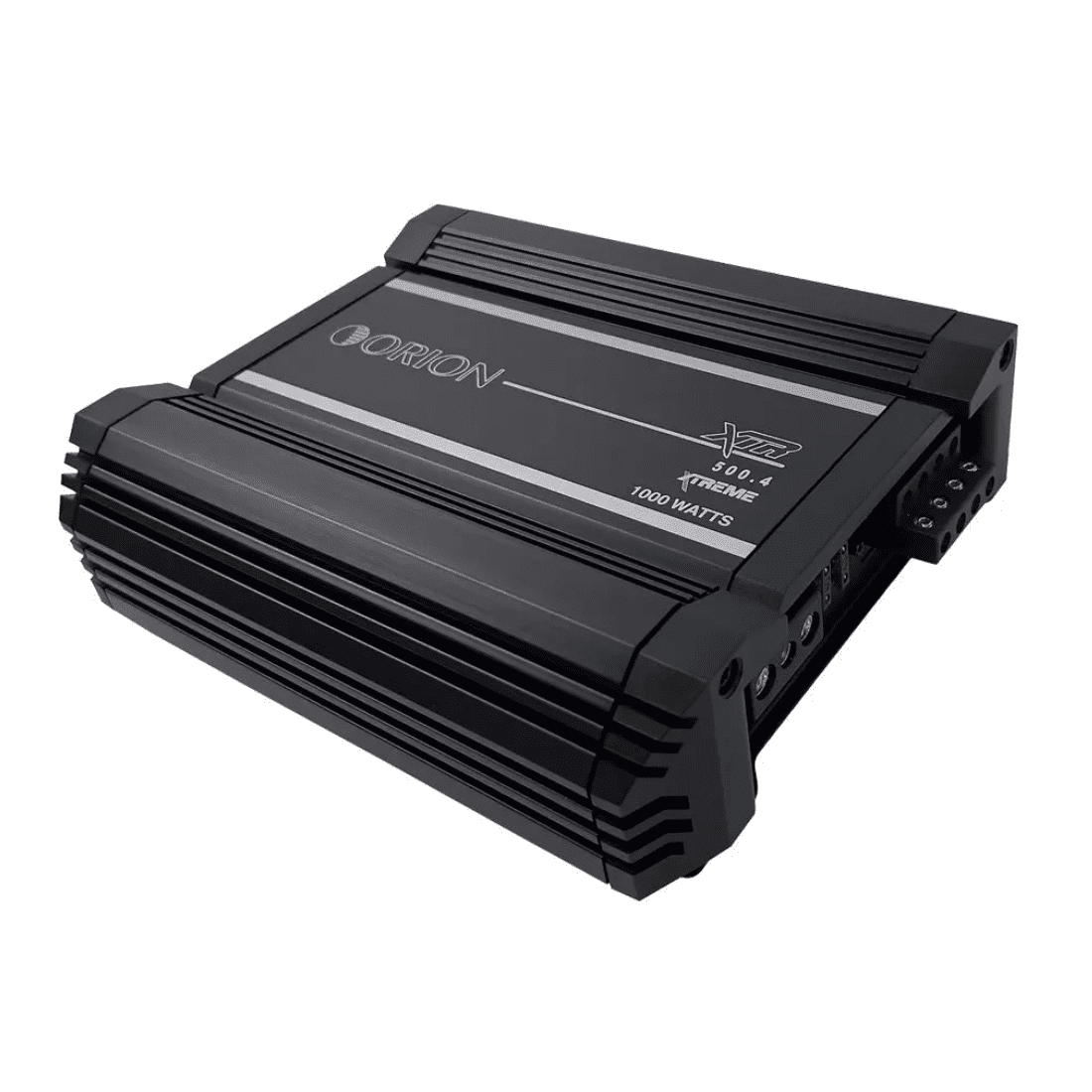

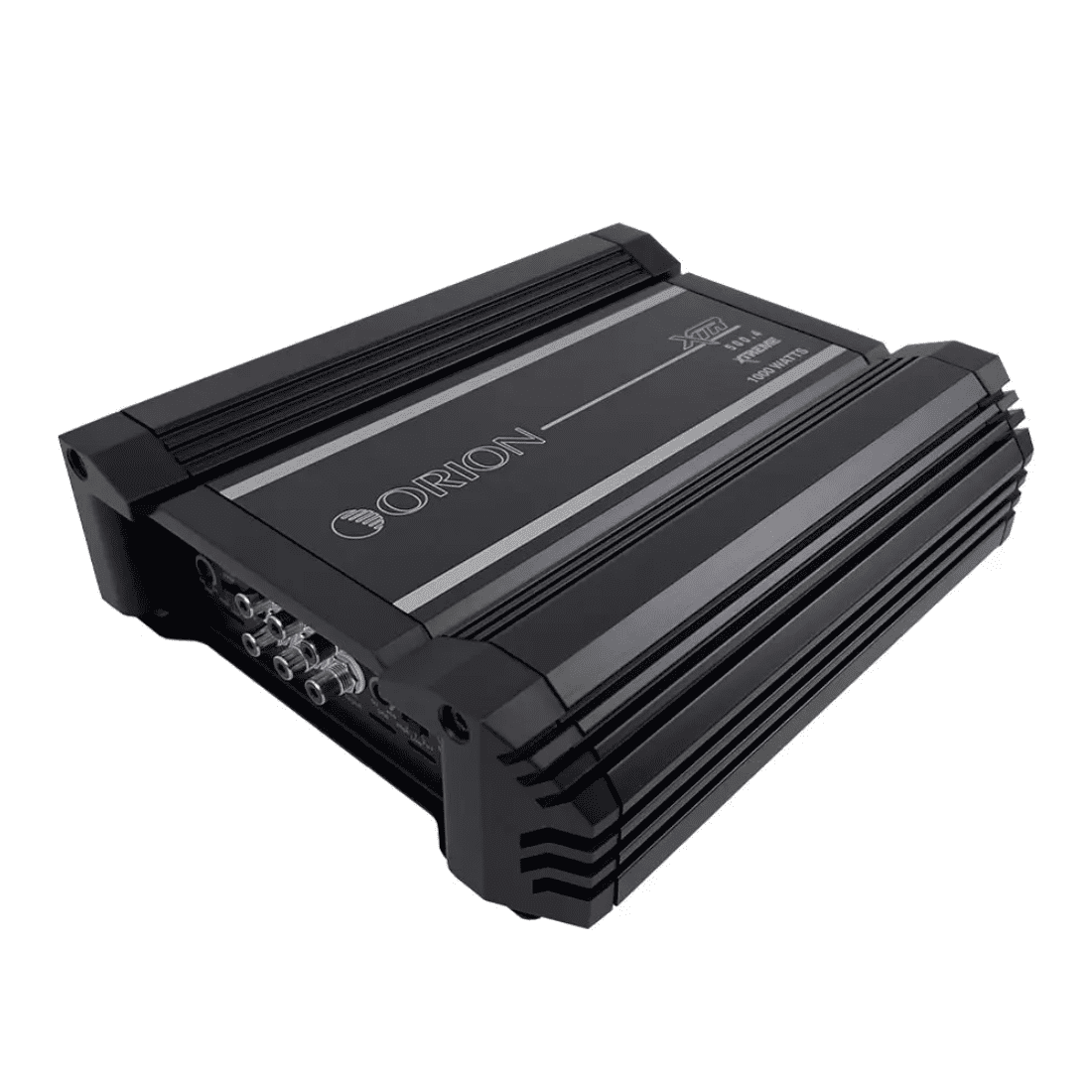

Orion 4 Channel Amplifier 2000 Watts Max 4 Ohm Class AB XTR Series XTR500.4
Product details
| Management number | 238014161 | Release Date | 2026/07/11 | List Price | US$95.98 | Model Number | 238014161 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Orion XTR500.4 Class AB 4 Channel Amplifier This is Orion's XTR500.4 Class AB 4 Channel Amplifier. This amplifier is manufactured by Orion as part of their XTR series and is designed and crafted with the best components on the market. This amplifier is a Class AB Stereo 4 Channel amplifier with a total nominal power of 1000 watts. It has a sleek rugged design that is sure to give your system a great look. Specifications • Power 4 Ohms Stereo at 14.4V: 90 Watts RMS x 4Ch • Power 2 Ohms Stereo at 14.4V: 125 Watts RMS x 4Ch • Power 4 Ohms Bridge at 14.4V: 250 Watts RMS x 2Ch • Total Nominal Power: 1000 Watts • Total Max Music Power: 2000 Watts • Length: 10.3" • Height: 2.5" • Depth: 9.3" • All MOSFET Power Supply • Heavy Gauge Direct-Wire High current Power and Speaker Terminals • 12dB/Octave Low-Pass Filter • Frequency Response: 10Hz to 35kHz • High Pass Crossover: 50Hz ~ 5kHz • Low Pass Crossover: 50Hz ~ 400Hz • Signal to Noise Ration: >95dB • THD at 1 Watt, 4 Ohm: <0.5% • Electronic Crossover Network • Bass Boost Circuit • Tri-Mode Capable • High Pass/ Low Pass Filter Control • Power and Protection LED Indicators • Soft Turn-On/Turn-Off
Orion XTR5004 Car Amplifier- Rated Power @ 2 Ohm: 4 x 500W
- Audio Channels: 4
- Rated Power @ 2 Ohm: 4 x 500W
- Audio Channels: 4
| Brand | Orion |
|---|---|
| Rms power rating | 1000 W |
| Channels | 4 |
| Impedance | 4 ohm |
| Peak audio power handling | 2000 W |
| Rec. use | Car Audio |
| Size | ? Length: 10.3"? Height: 2.5"? Depth: 9.3" |
| Color | Black |
| Rec location | Vehicle |
| Audio output | 1000 W |
| Total harmonic distortion | 0.5 % |
| Signal-to-noise ratio | >95dB |
| Items included | 1 |
| Model | XTR500.4 |
| Automotive parts division | Performance |
| Vehicle type | Car |
| Vehicle fitment type | Universal |
| Has written warranty | No |
| Has nrtl listing certification | N |
| Assembled product weight | 8.4 Pounds |
| Volts | 14.4 V |
