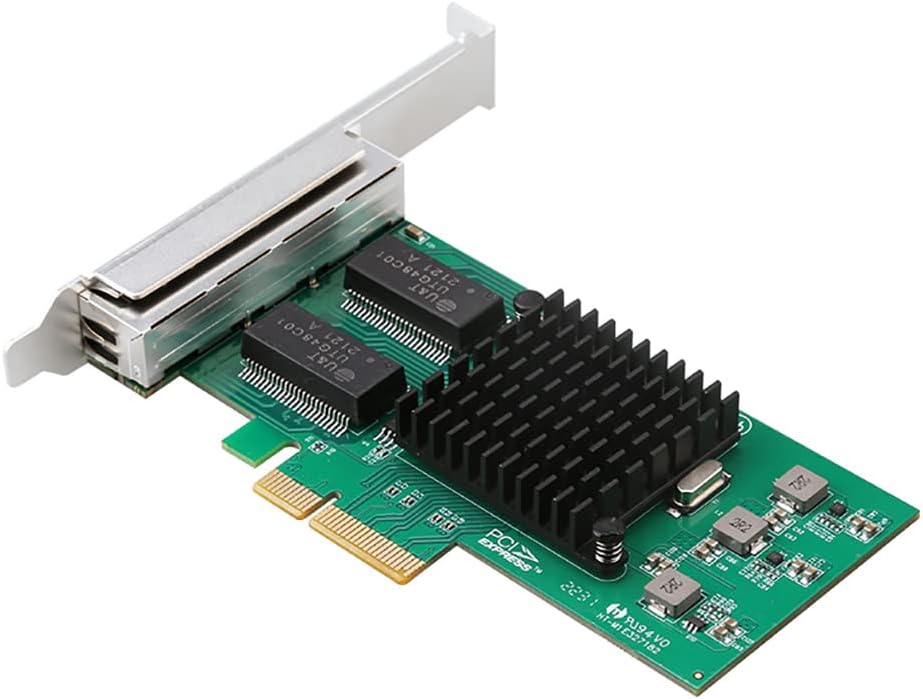

TXA034 4-Port Gigabit Network Card I350-T4 Enterprise Card with Chip I350 for PCIe 4X Interface Computer

DIEWU TXA034 4-port Gigabit Network Card I350-T4 Enterprise Card with Chip I350 for PCIe 4x Interface Computer Product Specification Model number: TXA034 Chipset: I350 Ethernet Controller Port number: 4*RJ45 Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab Data rate: 10/100/1000Mbps Interface: PCI express 4x LED Indicator: 8 LED 10/100/1000Mb (Link/Act) Halogen-free dual-port Gigabit Ethernet adapters with fiber interface options Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32virtual ports Dimension: 130*68.5*17mm Environment: Operating Temperature: 0?-55? Relative Humidity: 10%-90%(non-condensing) Storage Temperature: 0?-80? Relative Humidity: 5%-90%(non-condensing) Support OS: Compatible with DOS, Novell ODI. Compatible with Wins XP 32-bit(64-bit),Wins Vista 32-bit(64-bit),Wins 7 32-bit(64-bit). Compatible with Wins 8 32-bit(64-bit),Wins 8.1 32-bit(64-bit). Compatible with Wins Server 2003 32-bit(64-bit), Wins Server 2008 32-bit(64-bit),Wins Server 2008 R2 32-bit(64-bit), Wins Server 2012,Wins Server 2012 R2. Compatible with Linux 2.4 series kernel,2.6.x,3.x. Compatible with FreeBSD 7.x or most of FreeBSD,UnixWare / Open Unix 8. Compatible with Solaris x86,VMware,Xen4. Chipset Description: The Ethernet Controller I350 is a single, compact, low power component that supports quad portand dual port gigabit Ethernet designs. The device offers four fully-integrated gigabit Ethernet mediaaccess control (MAC), physical layer (PHY) ports and four SGMII/SerDes ports that can be connected toan external PHY. The I350 supports PCI Express* (PCIe v2.1 (2.5GT/s and 5GT/s)).

• Virtualization Ready: Next Generation VMDq support ( 8 VMs), Support of up to 8 VMs per port ( 1 queue allocated to each VM), PCI- SIG I/O SR-IOV support ( Direct assignment ), Queues per port : 8 TX and 8 RX queues.
• Power Saving Features: Advanced Configuration and Power Interface ( ACPI ) powermanagement states and wake- up capability. Advanced Power Management ( APM ) Wake-up functionality. Lower power link-disconnect .
• IEEE802.1AS- Timing and Synchronization: IEEE 1588 Precision Time Protocol support, Per-packet timestamp.
• Ethernet Controller I350: The device enables two-port or four port 1000BASE-T implementations using integrated PHY?s. It can be used for server system configurations in an add-on NIC or LAN on Motherboard (LOM) design. Another possible system configuration is for blade servers. Here, the I350 can support up to 4 SerDes ports as LOM or mezzanine card. It can also be used in embedded applications such as switch add-on cards and network appliances.
• High-performing Bridgeless Design: Supporting PCI Express* Gen 2.1 5GT/s, Low-Profile and Standard height full, Scalable iSCSI performance delivering cost-effective SAN connectivity, Automatic cross-over detection function (MDI/MDI-X).
